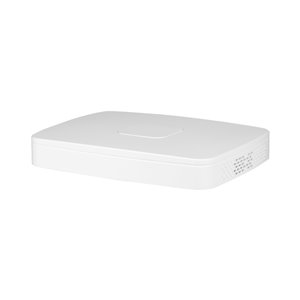

XVR604-5M-H1-A - XVR 5 en 1 avec 4 canaux HDCVI / ...

Specs

5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
4 BNC channels up to 5MP (BNC inputs can be converted to IP)
2 6MP IP channels (added to BNC inputs)
Video compression: AI, H.265 +, H.265, H.264 +, H.264
HDMI (1080P) and VGA (up to 1080P) video outputs
Output division: 1, 4 (IP mode off); 1, 4, 6 (IP mode enabled)
1 RCA input / 1 RCA audio output
Two-way audio via RCA audio channel
Audio compression: G.711a, G.711u, PCM
Recording resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
32 Mbps maximum incoming bandwidth
Main stream: 5M-N (1 ~ 10 ips), 4M-N / 1080P (1 ~ 15 ips), 1080N / 720P / 960H / D1 / CIF (1 ~ 25 ips)
Secondary stream: D1 / CIF (1 ~ 15 ips)
Recording modes manual, by calendar, by video detection, video loss, tampering, alarm, stop
Intervals for recording (1 ~ 60 minutes), pre-recording (1 ~ 30 sec.) And post-recording (10 ~ 300 sec.)
Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
Playback of up to 4 channels
Perimeter protection: 1 channel, up to 10 IVS rules, people / vehicles classification
Face detection: 1 channel, only supports analog cameras
SMD Plus: 4 channels, person / vehicle classification
Internal capacity for 1 SATA HDD up to 6TB (sold separately)
Multilanguage on-screen menu with new improved graphical interface
Software and hardware watchdog
Watermark to preserve the integrity of the videos
RJ45 Fast Ethernet network port (100M)
Network protocols: HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Server Alarm, P2P, IP Search, (supports DAHUA IP cameras, DVR, NVS, etc.)
ONVIF 16.12 and CGI compliant
Remote access from web browser and iPhone, iPad, Android devices (EVO and Peepall App)
Sending emails with attached photograph in alarm
Send to FTP scheduled or in alarm
Possibility of sending alarm and being connected to alarm receiver software (C.R.A.) using free AlarmSpace software
Possibility of fixed or dynamic IP through DDNS Evolution service
Communication ports: 2 USB 2.0 ports
Power supply: 12V DC, 1.5A (<4W, not counting discs)
Storage temperature -20 ° C ~ + 70 ° C
-10 ° C ~ + 45 ° C operating temperature
Relative humidity 0% ~ 90%
Dimensions: 204.6 (W) 45.6 (H) x 210.9 mm
Weight: 490 g
Desktop installation
