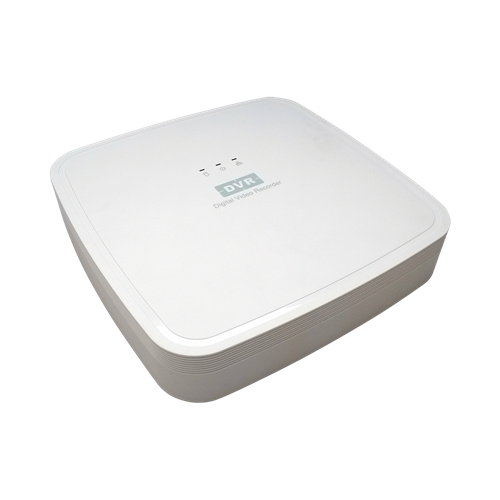

XVR604-4M-H1 - 4 canaux 5 en 1 xvr HDCVI / HDTVI / AH ...

• Smart H.265: H.265+ compression format improves coding efficiency up to 90% and reduce video data storage costs.

• Video format versatility: Can connect up to 4 analog cameras (CVI/TVI/AHD/CVBS) and 2 additional IP cameras, assigning various or all analog channels to IP to obtain 6 IP channels.

• Long distance transmission: HDCVI system allows long distance transmission via coaxial cable (up to 700 meters at 4M-N, 800 meters at 1080P and 1200 meters at 720P).

• POS function: This function includes the overlay and search for ticket information from sales terminals.

• Intelligent Video System (IVS): Up to 2 IVS channels; detection and analisys of objects in movement, abandoned or lost, tripwire

• Facial detection technology: 1 face detection channel, used to ease the search of recordings and identify people.

• Intelligent search function: Helps to do more accurate searches and elaborate a motion detection area during playback.

Features
- 4 channel 5 in 1 XVR (960H), CVI/TVI/AHD (5M-N, 4M-N, 1080P, 720P) + 2 IP channels (6MP)
- 5 technology: IP, HDCVI, HDTVI, AHD and CVBS with automatic signal recognition
- Display and playback supported of all channels at 1080p
- H.265+/H.265/H.264+/H.264
- 4 BNC input:
  • HDCVI: 5M-N, 4M-N, 1080P, 1080N, 720P
  • HDTVI: 5M-N, 4M-N, 1080P, 1080N, 720P
  • AHD: 5M-N, 4M-N, 1080P, 1080N, 720P
  • CVBS: 960H (NTSC/PAL)
- IP camera input: 2 IP inputs at 6MP (added to BNC inputs)
- Video output: HDMI and VGA up to 1080P
- Output division on IP mode OFF: 1, 4
- Output division on IP mode ON: 1, 4, 6
- 2 way audio: 1 RCA audio in / 1 RCA  audio out
- Recording resolution: 5M-N, 4M-N, 1080P (1920x1080), 1080N (960x1080), 720P (1280x720), etc.
- Maximum input bandwidth of 24 Mbps
- Stream 1: Channel 1 at 5M-N (1~10 fps) + rest of channels at 4M-N/1080P (1~15 fps); 1080N/720P/960H/D1/CIF (1~25 fps)
- Stream 2: D1/CIF (1~15 fps)
- Recording modes:manual, calendar, video detection, video loss, manipulation , alarm
- Recording intervals: 1~60 min (60 min default), pre-recording of 1~30 sec., post-recording of 10~300 sec.
- Independent motion detection configuration by camera (22x18 selectable grid), video loss and masking detection, diagnosys
- Video Quality Analisys (VQA)
- Playback up to 4 channel
- Maximum decoding capacity of 4 channels 4M-N/1080P at 15 fps
- 1 HDD SATA internal capacity up to 6TB (not included)
- Multilanguage display menuwith new grpahic interface
- Software and hardware watchdog
- Watermark
- Third party support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- Fan can be switched ON/OFF depending of CPU temperature
- Ethernet port: RJ45 Fast Ethernet (100M)
- Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, Alarm server, P2P, IP search
- Up to 128 users
- Compatible with ONVIF 16.12 and CGI
- Compatible with IDMSS, EVOPLUS and SMARTPSS
- By Demes P2P, DDNS Demes, app EVO VMS and app EVO DSS
- eMail sended with attached picture on alarm
- Programmed FTP or alarmed sending
- Possibility of sending an alarm and being connected to the alarm receiving software (C.R.A.) using free software AlarmSpace
- Fixed/dynamic IP via DDNS Evolution service
- Communication ports: 2x USB 2.0
- Power supply: 12V DC, 1,5A (<10W, without discs)
- Working temperature: -10°C ~ +45°C
- Working RH: 10%~90%
- Storage temperature: -20°C ~ +70°C
- Storage RH: 0%~90%
- Dimensions: 205 x 211 x 45 mm
- Weight: 1,1 kg (without HDD)
- Desktop installation
