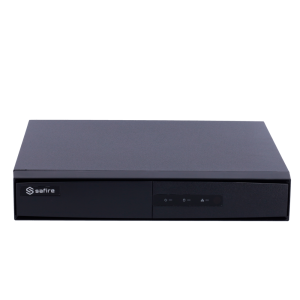

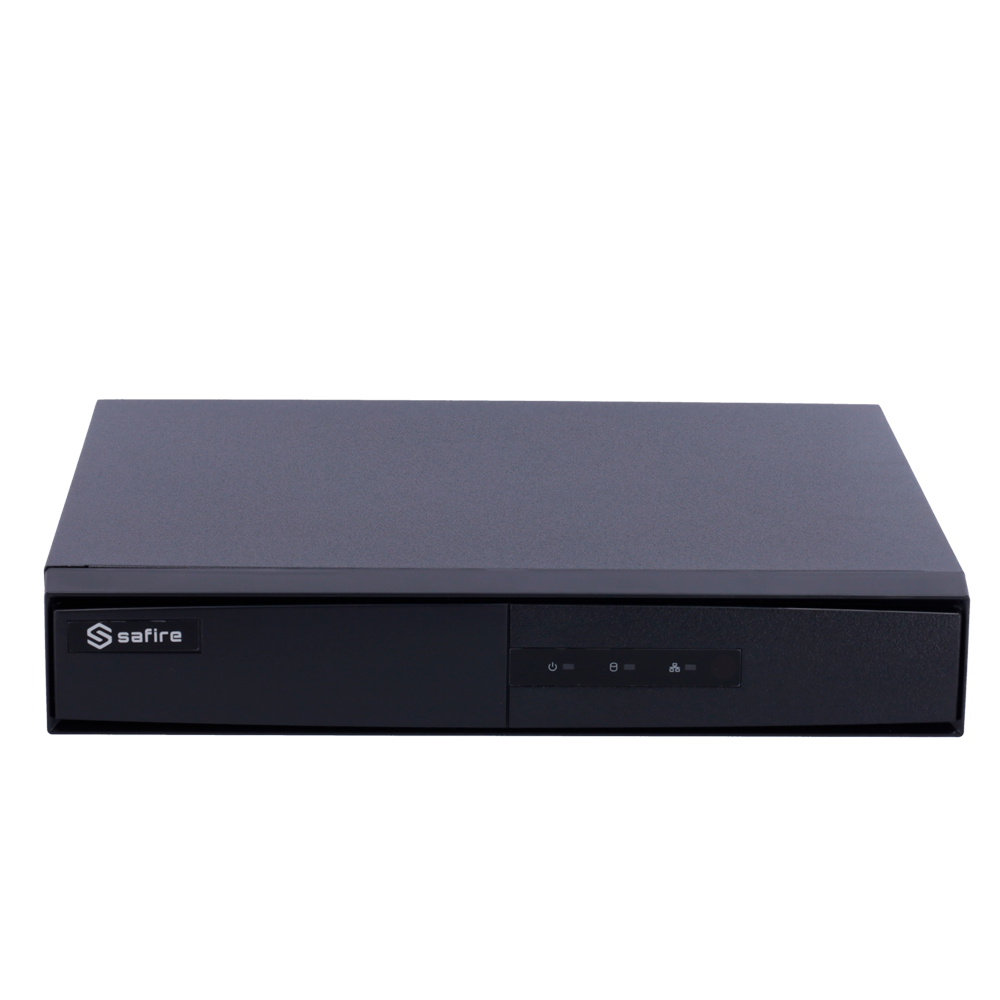

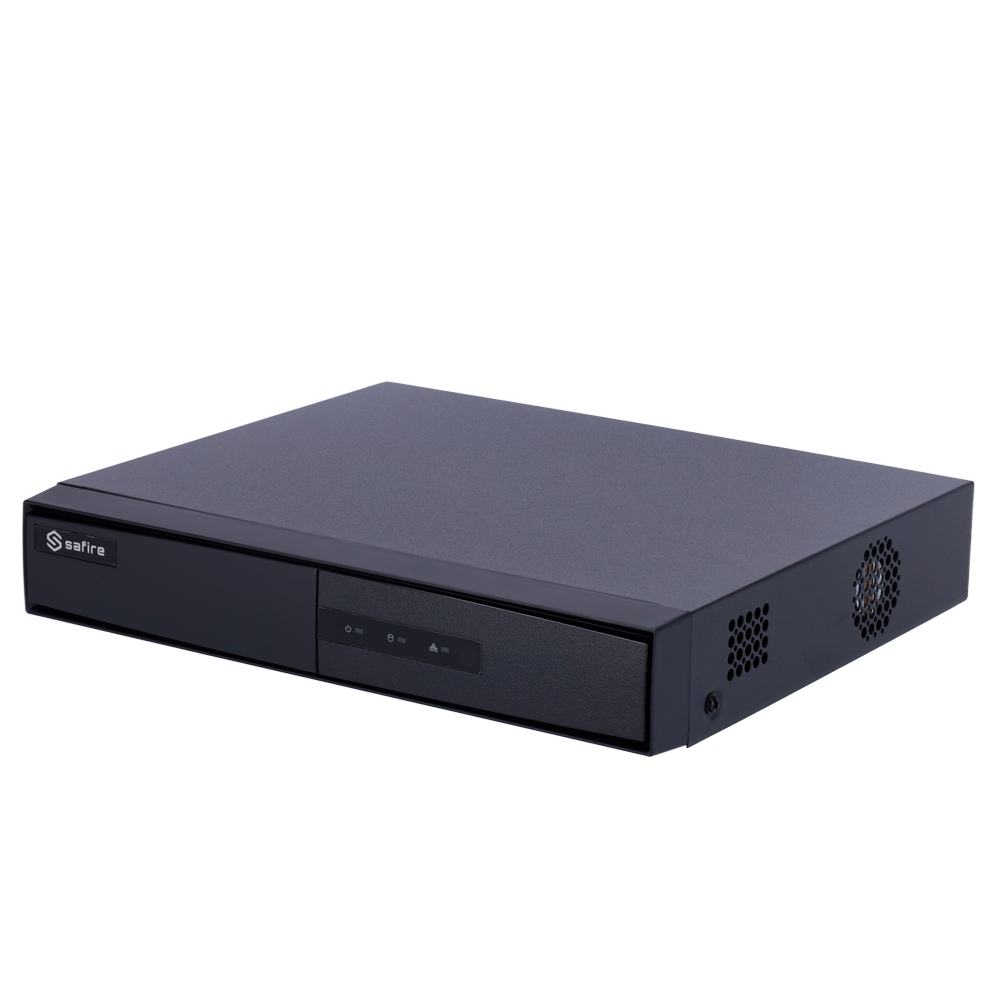

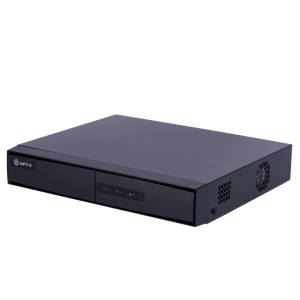

Safire 5n1 DVR - SF-XVR8108S-4KL-4AI

Réf.: SF-XVR8108S-4KL-4AI

incl. T.V.A.€267,38

Prix de vente€267,38

excl. T.V.A. €213,90

Remise :

TVA: €53,48

Réf.: SF-XVR8108S-4KL-4AI
Safire 5n1 DVR
4 CH HDTVI / HDCVI / AHD / CVBS / 8 IP
H.265 Pro+
HDMI 2K, VGA and BNC (CVBS) output
4 CH Artificial intelligence
Supports 1 hard drive | Audio

+50 en stock

retourner

Description du produit: SF-XVR8108S-4KL-4AI

Description
Specification

SF-XVR8108S-4KL-4AI
Safire
DVR 5n1
4 CH video HDTVI/HDCVI/AHD/CVBS / 4+4 IP / 1 CH audio
H.265Pro+/H.265Pro/H.264+/H.264
Resolution 8Mpx (8FPS) in the channel 1 or 1080p/720P (25FPS)
PTZ Control (RS485/Coaxial)
1 RJ45 10/100M
HDMI Full HD, VGA & CVBS Outputs
Face Capture (Available for 1Ch analog)
TrueSense, false alarm filter for vehicles and people (Available for 4 CH for coaxial video)
Mouse
Space for 1 HDD

Réf.	SF-XVR8108S-4KL-4AI
Brand	SAFIRE
Video format	HDTVI / HDCVI / AHD / CVBS / IP
Video inputs	4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration	Up to 8 IP Channels (8Mpx), replacing all the BNC channels
Video outputs	1 HDMI 2K, 1 VGA (Independent of HDMI), 1 BNC (CVBS)
Audio inputs	1 RCA channels
Audio outputs	1 Channel RCA
Bidirectional audio	Reusing the audio input/output
Audio Bit Rate	64 Kbps
Audio compression	G.711u
Video / audio compression	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Display resolution	2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 (60 Hz)
Recording resolution	4K / 5Mpx / 4Mpx / 3Mpx / 1080p (30/25 FPS) / 720p (60/50/30/25 FPS)
Main Stream coding	4K (8 FPS) CH1 / 3K (12 FPS) / 5Mpx (12 FPS) / 4Mpx (15 FPS) / 3Mpx (18 FPS)/ 1080p / 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
Extra Stream coding	WD1 / 4CIF / CIF (25 FPS)
Video Bit Rate	32 Kbps at 10 Mbps
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms	16 IN / 4 OUT
Artificial intelligence	False alarm filter for enhanced human and vehicle detection, available in up to 4ch of coaxial video \| Face Capture (1 ch analog)
Video analysis	VCA: Line crossing \| Area intrusion
Recording method	Manual, programmed, motion detection, alarm
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network/ Cloud (Microsoft One Drive, Dropbox)
Internal memory	1 HDD SATA 3.5" of up to 10TB (not included)
Communication	RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
Remote connections	32
Remote access	Web browser, Smartphone App and Safire Control Center CMS Software
Power	DC 12 V / <10 w="" td="">
Operating temperature	-10° ~ +55° C
Dimensions / Weight	45 (H) x 242 (W) x 315 (D) mm / 1.16 Kg
