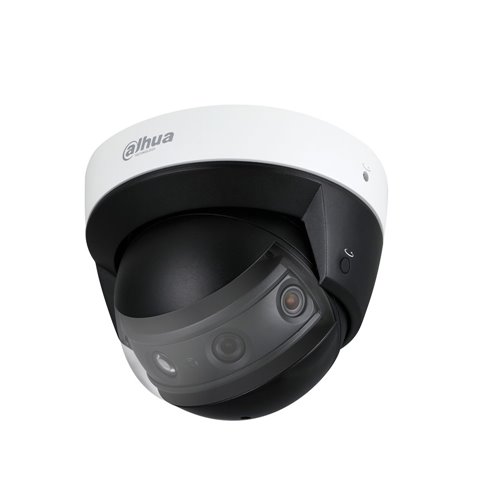

Quad Sensor- Four Sony® Starvis CMOS 1 / 2.8 "Unités - IPC-PDBW8800-A180

- Quad sensor: Four Sony® Starvis CMOS 1 / 2.8 "units
- H.265 + / H.265 / H.264 + / H.264 compression format
- Digital resolution: 4096x1800, 3840x1680, 2880x1264, 1920x832, 1280x560 , 1024x452
- Main stream: 4096x1800 (1 ~ 25 ips)
- Sub stream 1: 1024x452 (1 ~ 25 ips)
- Sub stream 2: 1920x832 (1 ~ 25 ips)
- Day / night mode with removable mechanical filter
- Smart IR: 6 leds, 30 meters
- Minimum illumination: 0.007 lux F2.0 color / 0 lux F2.0 IR On
- Fixed optics of 3 mm (H: 180 °, V: 80 °)
- Digital zoom 16X
- White balance of 5 configurations
- Automatic and manual gain control
- Backlight compensation (BLC, HLC)
- Digital WDR
- 3D-DNR noise reduction
- 4-zone rectangular video sensor - 4 rectangular zones
privacy mask
- ROI: 4 areas of interest
- Intelligent video analysis (IVS): Line crossing, intrusion, abandoned / lost objects
- Intelligent functions : Heat map, E-PTZ
- 1 input / 1 audio output
- 2 inputs / 2 alarm outputs
- MicroSD card slot (up to 128GB, card not included)
- Network interface: RJ45 (100/1000 Base-T )
- Network protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4, IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP , IGMP, SNMP
- Compatible with ONVIF, PSIA, CGI
- Streaming method: Unicast, Multicast
- Up to 10/20 users
- Power supply: 24V AC, <25.5W
- Supports PoE + (802.3at, Class4)
- Operating temperature of -40 ° C ~ + 60 ° C
- Humidity: <95%
- Lightning-proof 6KV
- Degree of protection IP67
- Vandal protection IK10
- Metal housing
- Dimensions: Ø212 x 169.5 mm
- Weight: 3.6 kg
