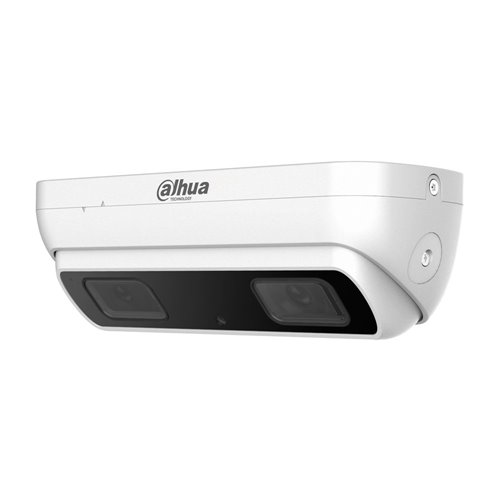

1/2,8 "Double capteur CMOS - 3MP - IPC-HDW8341X-3D

• Serie Deep·Sense: DeepSense series products adopt the most ADVANCED AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the DAHUA DeepSense series to offer various ADVANCED applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of DAHUA DeepSense includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

• People counting camera: The people counting camera uses double lens technology to capture 3D depth information. The camera combines this information with learning algorithms to analyze and detect human bodies and track objects in real time. The camera provides statistics for the entry and exit of people with a count accuracy of up to 98%.


Features
- 1/2,8” Double sensor CMOS, 3MP
- H.265+/H.265/H.264+/H.264/MJPEG
- Digital resolution: 3MP (2048x1536), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
- Stream 1: 3MP (1~25 fps)
- Stream 2: D1 (1~25 fps)
- Stream 3: 6MP (1~7 fps, For Debugging Only)
- Day/night mode with removable mechanical filter
- IR illumination: 10m
- 0,009 luxF1.8 (color, 1/3s, 30IRE),0,08 lux F1.8 (color, 1/30s, 30IRE), 0 lux F1.8 (IR On)
- 2,8 mm fixed lens (H:137°, V:114°)
- Service video output
- 16X digital zoom
- White balance: Auto/Natural/Street Lamp/Outdoor/Manual
- Auto/manual gain control
- BLC, HLC
- Real WDR 120 dB
- 3D noise reduction
- 4 ROI
-Motion detection: 4zones
-Privacy mask: 4zones
- People counter patterns (IA): tripwire, area, height,marauding
- Event activation: Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly
- General Intelligence : Heatmap
- Audio:2 in / 2 out (built in microphone)
- Alarm: 2 in / 2 out
- MicroSD card slot up to 128GB (card is not included)
- Network interface: RJ45 (100/1000 Base-T)
- Network protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, IEEE802.1x, Multicast, ICMP, IGMP, SNMP, TLS
- Compatible with ONVIF (Profile S/G), API
- Unicast/Multicast streaming method
- Up to 10/20users
- Power supply: 12V DC
- Consumption: <12W
- PoE 802.3af supported, Class 0
-Working temperature: -30°C ~ +60°C
- RH: <95%
- IP67
-Metal case
- Dimensions:204 x78 x 62 mm
- Weight: 800 g
- Power supply is not included
