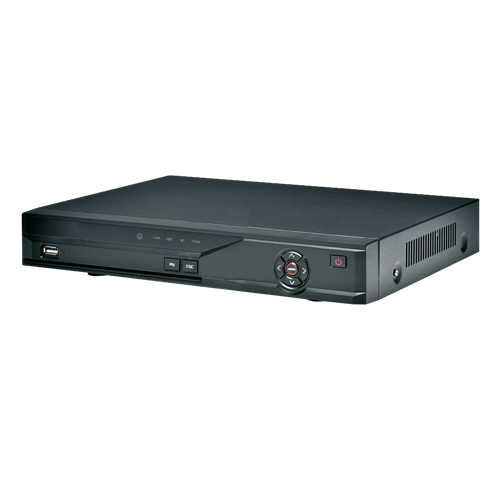

XVR608-4M-H1 - 8 canaux 5 en 1 xvr HDCVI / HDTVI / AH ...

• Smart H.265: The H.265 + compression format improves coding efficiency by up to 90% and reduces the costs associated with storing video data.

• Video format versatility: It allows to connect up to 8 analog cameras (CVI / TVI / AHD / CVBS) and 4 additional IP cameras, being able to assign several or all analog channels to IP channels to obtain up to 12 IP channels.

• Long distance transmission: The HDCVI system allows long distance transmission through coaxial cable (up to 700 meters at 4M-N, 800 meters at 1080P and 1200 meters at 720P).

• IVS: Up to 2 IVS channels; detection and analysis of moving objects, abandoned or lost, cross line analysis, which allows the camera to detect when a line predefined by the user has been crossed, etc.

• Facial detection technology: It allows 1 channel of face detection.

• Intelligent search function: Helps make more accurate searches by developing a motion detection area during playback.

Features
- 8 channel 5 in 1 XVR (960H), CVI/TVI/AHD (4M-N, 1080P, 720P) + 4 IP channels (6MP)
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS with automatic signal recognition
- Display and playback of all channels at 1080p supported
- H.265+/H.265/H.264+/H.264
- 8 BNC input:
  • HDCVI: 4M-N, 1080P, 1080N, 720P
  • HDTVI: 4M-N, 1080P, 1080N, 720P
  • AHD: 4M-N, 1080P, 1080N, 720P
  • CVBS: 960H (NTSC/PAL)
- IP camera input: 4 IP input at 6MP (added to BNC input)
- Video output: HDMI and VGA up to 1080P
- Output division on IP mode OFF: 1, 4, 8, 9
- Output division on IP mode ON: 1, 4, 8, 9, 16
- 2 way audio: 1 RCA in / 1 RCA out
- Recording resolution: 4M-N (1280x1440), 1080P (1920x1080), 1080N (960x1080), 720P (1280x720), etc.
- Maximum input bandwidth 48 Mbps
- Stream 1: 4M-N/1080P (1~15 fps), 1080N/720P/960H/D1/CIF (1~25 fps)
- Stream 2: D1/CIF (1~15 fps)
- Recording modes: manual calendar, video detection, video loss, manipulation, alarm
- Recording interval: 1~60 min (60 min default), pre-recording of 1~30 sec., post-recording of 10~300 sec.
- Independent motion detection configuration by camera (22x18 selectable grid), video loss and masking detection, diagnosys
- VQA
- Playback up to 8 channels
- Maxim decoding capacity of 8 channels 4M-N/1080P at 15 fps
- Internal capacity for 1 HDD SATA up to 10TB (not included)
- Multilanguage display menu
- Update firmware of DAHUA cameras from recorder
- Software and hardware watchdog
- Watermark
- Third party support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- Fan can be switched ON/OFF automatically depending on CPU temperature
- Network port RJ45 Fast Ethernet (100M)
- Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, Alarm Server, P2P, IP search (IP Dahua, DVR, NVS, etc.)
- Up to 128 users
- Compatible with ONVIF 16.12 y CGI
- Compatible with iPhone, iPad, Android (App EVO and Peepall)
- Compatible with IDMSS, EVOPLUS y SMARTPSS
- Email attached with picture on alarm
- Programmed or alarmed FTP sending
- Possibility of sending an alarm and being connected to alarm receiving central (A.R.C.) through free software AlarmSpace
- FIxed or dynamic IP via DDNS Evolution service
- Communication port: 1 port USB 2.0, 1 port USB 3.0, 1 port RS485 (for PTZ control)
- Power supply: 12V DC, 2A (<10W, without discs)
- Working temperature: -10°C ~ +55°C
- Working RH: 10%~90%
- Storage temperature: -20°C ~ +70°C
- Storage RH: 0%~90%
- Dimensions: 325 x 255 x 55 mm
- Weight: 1,2 kg (without HDD)
- Desktop installation
