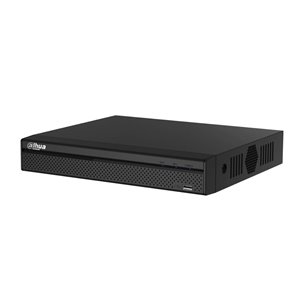

XVR5116HS-S2 - 16 canaux 5 en 1 xvr HDCVI / HDTVI / A ...







- 16 channel 5 in 1 XVR 960H, HD-CVI/AHD (4M-N, 1080P, 720P), HD-TVI (1080P, 720P) + 8 IP channels (5MP)
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS
- Automatic video input signal recognition
- Preview in all channels at 1080P and recording/playback at 1080P and 720P
- H264+/H.264
- LINUX embedded OS
- 16 BNC input:
  • HDCVI: 4M-N, 1080P, 720P
  • HDTVI: 1080P, 720P
  • AHD: 4M-N, 1080P, 720P
  • CVBS: 960H (NTSC/PAL)
- IP camera inputs: 8 additional IP inputs at 5MP (added to BNC inputs)
- Analog channels can become IP
- HDMI and VGA video output with SPOT funcion
- Output division (IP OFF): 1, 4, 8, 9, 16
- Output division (IP ON): 1, 4, 8, 9, 16, 25
- 2 way audio: 1 RCA in / 1 RCA out
- Display resolution: 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 4M-N, 1080P (1920x1080), 1080N (960x1080), 720P (1280x720), 960H (960x576), etc.
- Stream 1: 4M-N, 1080P (1~15 fps), 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF (1~25 fps)
- Stream 2: D1, CIF, QCIF (1~15 fps)
- Recording modes: Manual, calendar (regular, continuous), motion detection (video detection: motion detection, video loss, manipulation), alarm, stop
- Recording intervals: 1~60 min (60 min default) / 1~30 sec (pre-recording) / 10~300 sec (post-recording)
- Remote control via keyboard (Joystick) connected by TCP/IP or RS485
- Independent motion detection configuration by camera (22x18 selectable grid), video loss and masking detection, diagnosys
- 16 channel simultaneous playback
- Intelligent search function
- Intelligent video analisys: Detection and analisys of objects in movement, abandoned or lost. Tripwire supported
- Facial detection
- 1 HDD SATA capacity up to 8TB (not included)
- On screen menu configuration
- Software and hardware watchdog
- Watermark
- 3D intelligent positioner with compatible motorized domes
- Third party support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc.
- The fan can be turned on or off automatically depending on the temperature of the CPU
- Network port: RJ45 (1000 Mbps)
- Network protocols: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, alarm server, IP search
- Up to 128 users
- Compatible with ONVIF 2.4.2 y CGI
- Compatible withiPhone, iPad, Android (App EVO and Peepall)
- SmartPSS free client software (multi-connection) and connection via browser (Internet Explorer, etc.)
- Email sended with attached picture
- Programmed or alarmed FTP sending
- Fixed/dynamic IP via DDNS Evolution service
- Communication port: 1x USB 2.0, 1x USB 3.0, 1x RS485 (for PTZ control)
- Power supply: 12V DC, 2A (<10W, without discs)
- Working temperature: -10°C ~ +55°C
- Storage temperature: -20°C ~ +70°C
- RH: 0~90%
- Dimensions: 260 x 236 x 48 mm
- Weight: 750 g (without HDD)
- Desktop installation
