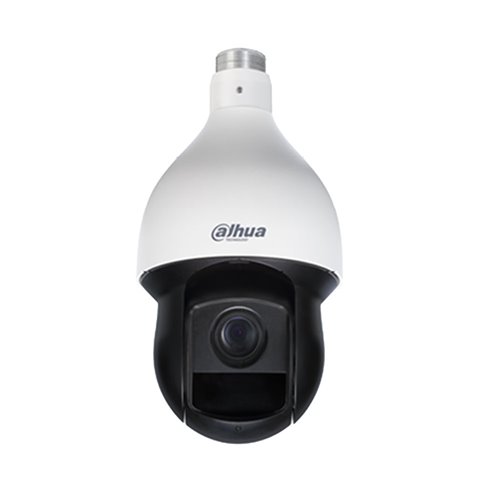

SD59225-HC-LA - Dôme motorisé 4 en 1 de 300 ° / SE ...

Features

    StarLight technology
    1 / 2.8 "Sony® STARVIS ™ CMOS sensor, 2 megapixel
    25X optical zoom
    Up to 25/30 ips at 1080P, 25/30/50/60 ips at 720P
    WDR 120dB, 3D-DNR
    4-in-1 video output (HDCVI / HDTVI / AHD / CVBS)
    Infrared illumination up to 150 meters
    Degree of protection IP66

Specs

    1 / 2.8 ”Sony® STARVIS ™ CMOS sensor, 2 megapixels
    Digital resolution: 1080P (1920x1080), 720P (1280x720)
    Pictures per second: 25/30 ips @ 1080P, 25/30/50/60 ips @ 720P
    4 in 1 video output: HDCVI / HDTVI / AHD / CVBS
    0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W), 0 lux IR On
    Removable mechanical filter
    Infrared lighting: 4 LEDs, up to 150 meters
    25X Optical Zoom: 4.8 ~ 120mm
    Viewing angle: 61 ° ~ 2.8 ° (H), 22.6 ° ~ 0.4 ° (V)
    Automatic, semi-automatic and manual focus control
    Automatic and manual iris control
    16X digital zoom
    White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Street Light
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    True WDR 120 dB
    2D / 3D digital noise reduction
    Digital defog
    24 zone privacy mask
    Horizontal positioner: 0 ° ~ 360 °
    Vertical positioner: -15 ° ~ 90 °, autoflip 180 °
    Manual speed: 0.1 ° ~ 300 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)
    Preset speed: 400 ° / sec. (H), 300 ° / sec. (V)
    300 presets
    DH-SD and Pelco-D / P protocols (automatic recognition)
    5 patterns, 8 rounds of up to 32 presets each, 5 scans
    Adjustable speed
    RS485 port (1200 ~ 9600 bps)
    1 audio input / 1 output
    2 inputs / 1 alarm output
    Power supply: 24V DC / 3A (± 25%)
    Consumption: 9.6W, 22W with IR illumination
    -40 ° C ~ + 70 ° C operating temperature
    Relative humidity: <95%
    Degree of protection IP66
    Lightning-proof 6KV
    Metal housing
    Dimensions: Ø186 x 310 mm
    Weight: 3.9 kg
    Includes wall mount and power adapter
