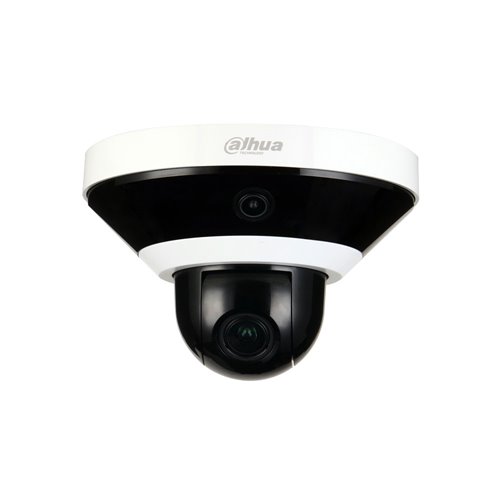

PSDW5631S-B360 - Dôme motorisé de 51 ° / sec., Avec 3 ...

Réf.: PSDW5631S-B360

incl. T.V.A.€923,30

Prix de vente€923,30

excl. T.V.A. €738,64

Remise :

TVA: €184,66

Dôme motorisé de 51 ° / sec., Avec 3 cmos, 2 mp, iLumination IR de 15 m pour l'intérieur. 1/2,7 "" CMOS, 2 MP (1 pour PTZ Dome PTZ, 3 pour caméras fixes). H.265 / H.264. 1080p à 25fps. Lentille PTZ de 2,7 ~ 13,5 mm, Lens panoramique de 2 mm (H: 136 °; V: 78 °). Filtre ICR. OSD, AWB, AGC, BLC, HLC, WDR numérique, 3D-DNR, ROI, Détection de mouvement et masque de confidentialité. IVS. 80 préréglages DH-SD, Pelco-D / P. 2 voies audio. Alarme: 3 in / 2 out. RS485. MicroSD. Onvif, cgi. 12V DC. Poe soutenu.

Peu en stock

retourner

Description du produit: PSDW5631S-B360

Description

Features

PSDW5631S-B360
3 panoramic 1/2,7" CMOS, 2MP camera sensors
1/2,7" CMOS motorized camera sensor, 2 MP
H.265/H.264 with dual stream
1080P at 25 frames per second
360° panoramic view supported
Day/night (ICR), 3D-DNR, AWB, AGC, BLC
IR illumination up to 15 meters
MicroSD slot for up to 256GB cards
PoE+ supported

Panoramic camera

PSDW5631S-B360
3x 1/2,7” CMOS sensor, 2 MP
Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 1080P (1~25 fps)
Stream 2: D1 (1~25 fps)
IR illumination up to 15 meters
Minimum illumination: 0,03 lux F2.2 (color, 1/3s, 30IRE), 0,2 lux F2.2 (color, 1/30s, 30IRE), 0,03 lux F2.2 (B/W, 1/3s 30IRE), 0,2 lux F2.2 (B/W, 1/30s, 30IRE)
2 mm lens
Viewing angle: 136°(H), 78°(V)
Privacy mask of 4 zones

Motor camera

PSDW5631S-B360
1/2,7” CMOS sensor, 2 MP
Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 1080P (1~25 fps)
Stream 2: D1 (1~25 fps)
Minimum illumination: 0,02 lux F1.8 (color, 1/3s, 30IRE), 0,1 lux F1.8 (color, 1/30s, 30IRE), 0,02 lux F1.8 (B/W, 1/3s 30IRE), 0,2 lux F1.8 (B/W, 1/30s, 30IRE)
5X optical zoom: 2,7 ~ 13,5 mm motor lens
Viewing angle: 105,9°~33,3°(H), 56°~18,7°(V)
Horizontal positioner: 0° ~ 355°
Vertical positioner: 0° ~ 80°
Manual speed: 32° ~ 51°/sec. (H), 22° ~ 40°/sec. (V)
Preset speed: 51°/sec. (H), 40°/sec. (V)
80 presets
DH-SD and Pelco-D/P protocols (automatic recognition)
Privacy mask of 24 zones

General

PSDW5631S-B360
Day/night mode with removable mechanical filter
White balance: Automático, Natural, Light, Outdoor, Manual
Gain control: Auto, Manual
Backlight compensation (BLC, HLC)
Digital WDR
3D-DNR
4x ROI
Motion detection of 4 rectangular zones
16X digital zoom
Mirror mode
IVS: Trpwire and intrusion
Audio: 1 in / 1 out
Alarm: 3 in / 2 out
RS485
Network interface: RJ45 (100/1000 Base-T)
Network protcol: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Compatible with ONVIF (Profile T), CGI
Unicast / Multicast streaming method
Up to 10/20 users
Remote display via IE, Chrome, Firefox and Safari
Management software Smart PSS, DSS, DMSS
Compatible with IOS and Android
MicroSD card slot up to 256GB (card is not included)
Power supply: 12V DC
Consumption: <7,2W, max. 14,8W
PoE supported (802.3 af, Class 0)
PoE consumption: 7,4W, max. 16,1W
Not suitable for outdoors
Working temperature -10°C ~ +50°C
RH: <95%
Metal and plastic case
Dimensions: Ø172 x 123,4 mm
Weight: 780 g
Power supply is not included
