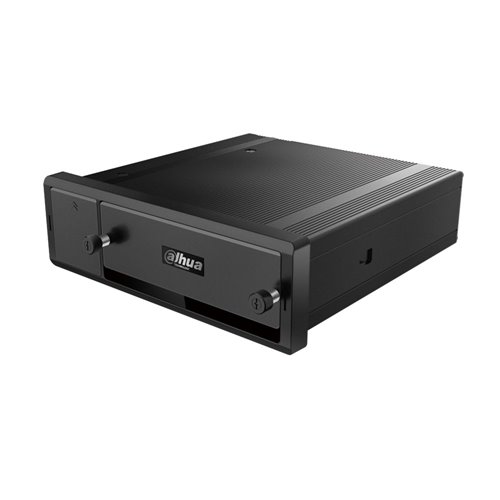

MXVR6212-GFW - XVR 5 sur 1 mobile 8 canaux HDCVI ...

Réf.: MXVR6212-GFW

incl. T.V.A.€2152,28

Prix de vente€2152,28

excl. T.V.A. €1721,82

Remise :

TVA: €430,46

XVR 5 sur 1 mobile 8 canaux HDCVI / HDTVI / AHD / CVBS + 4 canaux IP 1080P (ajouté aux entrées BNC). SMART H.264, H.264. Audio bidirectionnel. Joue 4 canaux. 8 + 4 canaux enregistrement en temps réel 1080p. 2 sorties de télévision et 1 sortie VGA. 9 Entrées d'alarme / 2 sorties. Prend en charge 2 disque dur. Slot de carte SD. Comprend un module GPS, 3G / 4G et WiFi. Port RJ45. 1 USB 2.0 + 3 USB 3.0, 2 RS485, 2 RS232. Tolérance aux vibrations. 6V ~ 36V.

Rupture de stock

retourner

Description du produit: MXVR6212-GFW

Description

MXVR6212-GFW
Video format versatility: Allows you to connect up to a maximum of 8 analog cameras (CVI / TVI / AHD / CVBS) and 4 additional IP cameras.
Anti-vibration: Using shock-absorbing structure and materials, the new hard drive cage can withstand varying degrees of vibration, keeping the system operating normally all the time.
Wide voltage range: Since the voltage output of the vehicle battery changes while driving, the amplitude of the supply voltage will Protect the device.
3G / 4G / WiFi connectivity: Thanks to the integrated 3G / 4G / WiFi module, the device can register on a public network to connect with VMS and send all the information (video / audio / alarm / gps) through a wireless network.
    GPS: The built-in GPS module can receive location information and upload to VMS. Even when the device is offline, it can upload the information once it is online again and the vehicle can be tracked on the VMS map.

Features

    Special 5-in-1 mobile XVR for vehicles up to 8 analog channels CVI / TVI / AHD / CVBS + 4 IP channels
    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
    Supports preview and playback of all channels
    Smart H.264, H.264 video encoding
    8 BNC inputs with aviation connectors
    Input for IP cameras: 4 IP inputs (added to BNC inputs)
    Two-way audio: 1 input / 1 audio output
    2 TV outputs and 1 simultaneous VGA output
    1920x1080, 1280x1024, 1280x720P, 1024x768, 800x600 display resolution
    Output division: 1, 4, 8, 9, 12
    4 rectangular zone privacy mask per camera
    Recording resolution: 1080P (1920x1080)
    Stream 1: 12 channels 1080P (1 ~ 25 ips)
    Stream 2: D1 (1 ~ 6 ips), CIF (1 ~ 25 ips)
    Manual, calendar, video detection, alarm recording modes
    Recording intervals: 1 ~ 120 minutes (60 minutes by default), pre-record 1 ~ 30 sec., Post-record 10 ~ 300 sec.
    Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking
    9 alarm inputs (inputs 1 to 7 are local inputs, inputs 8 and 9 are pulse inputs)
    2 alarm outputs (1 relay output + 1 12V output)
    4-channel playback
    Internal capacity for 2 SATA HDDs (sold separately)
    SD card slot (card not included)
    Multilanguage on-screen menu with new improved graphical interface
    Incorporates 3G / 4G and WiFi communication module
    Built-in high precision GPS module
    RJ45 network interface (10 / 100Mbps)
    Network protocols: TCP / IP, UDP, DHCP, FTP, Email, Alarm server
    Remote access for up to 128 users
    Compatible with iOS and Android mobile devices
    1 USB2.0 port + 2 USB3.0 ports
    2 RS232 ports
    2 RS485 ports
    CAN support
    Power range: 6V ~ 36V DC
    Consumption: <12W (without hard disk)
    Storage temperature: -30 ° C ~ + 70 ° C
    Operating temperature: -30 ° C ~ + 60 ° C
    Relative humidity: 10% ~ 90%
    Dimensions: 180 (W) x 60 (H) x 190 (Depth) mm
    Net Weight: 2.65kg (without HDD)
    FCC and ISO16750 certificates
