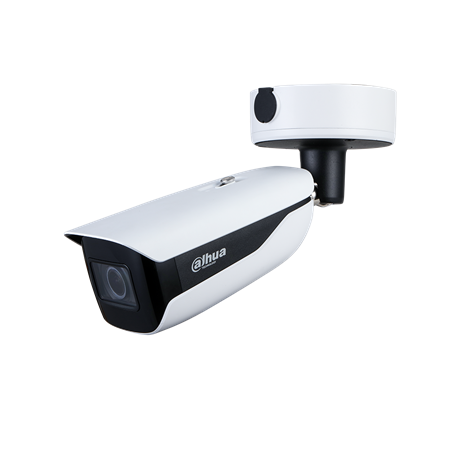

IPC-HFW5242HP-ZE-MF-2718 - Caméra de balle IP de la série Dahua AI ...

Features

    1 / 1.8 ”CMOS sensor, 2 megapixels
    H.265 and H.264 encoding with triple stream
    Resolution 1080P (1920x1080) at 50 ips
    WDR 140dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
    Remote multiple monitoring via web browser, CMS (DSS / PSS) and DMSS
    2.7mm – 18mm motorized lens
    Infrared illumination up to 70 meters
    3 inputs / 1 alarm output
    1 audio input / 1 output
    MicroSD slot
    Degree of protection IP67
    Anti-vandalism IK10
    Supports ePoE



Specs

    1 / 1.8 ”CMOS sensor, 2 megapixels
    Compression formats: H.265 / H.264 / MJPEG
    Digital Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
    Stream 1: 1080P (1 ~ 50/60 ips)
    Stream 2: D1 (1 ~ 50/60 ips)
    Stream 3: 1080P (1 ~ 25/30 ips)
    Day / night mode with removable mechanical filter
    Smart IR: 4 LEDs, 70 meters
    0.003 lux F1.8
    2.7mm – 18mm motorized lens
    Angle of view: 107 ° –33.9 ° (H), 69 ° –19 ° (V); 134 ° –38.8 ° (D)
    White Balance: Auto, Natural, Street Light, Outdoor, Manual
    Automatic and manual gain control
    Backlight compensation: BLC, HLC
    WDR 120dB
    3D-DNR digital noise reduction
    4 ROI zones
    4-zone rectangular video sensor
    4 Rectangular Zone Privacy Mask
    EIS Image Stabilizer
    Defog
    Mirror mode
    Artificial intelligence:
        Face Capture: Supports captures of facial images
        Face attributes: Supports 6 kinds of facial attributes extraction, such as age, gender, expressions (joy, surprise, neutral face, anger, etc.), glasses, mouth mask,
        beard...
        Perimeter protection: Line crossing, Intrusion (classification of people / vehicles)
        People counting: Supports counting by line crossing, region crossing, people row
        Supports 4 independent detection accesses and 4 independent detection areas
    Intelligent Detection (IVS): Scene changes, abandoned / lost objects, heat map
    1 audio input / 1 output
    3 inputs / 1 alarm output
    MicroSD card slot up to 256GB (not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
    Compatible with ONVIF (Profile S / G / T), CGI, Milestone, P2P
    Unicast / Multicast streaming method
    Up to 20 users
    Remote viewing through IE8 +, Chrome, Firefox and Safari + browsers 12
    Smart PSS, DSS, DMSS management software
    Compatible with IOS and Android mobile devices
    Power: 12V DC
    Consumption: <11.6W
    Supports PoE (802.3 af, Class 0)
    Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable
    Degree of protection IP67
    IK10 vandal protection
    Storage temperature -40 ° C ~ + 60 ° C
    -30 ° C ~ + 60 ° C operating temperature
    Relative humidity: 10% ~ 95%
    Metal and plastic housing
    Dimensions: 340.1mm × 108.5mm × 92.9mm
    Weight: 1.47 kg
    3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation)
